SAX-300DX

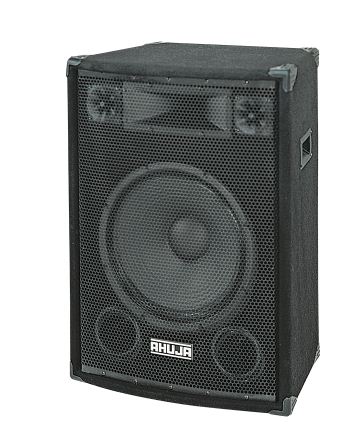

The Ahuja SAX‑300DX is a rugged, high‑output PA loudspeaker designed for demanding sound reinforcement environments. It features a three‑way configuration with a high‑efficiency 15″ low‑frequency woofer, a dynamic compression driver and two piezo tweeters, providing rich bass response and crisp high frequencies for both music and speech reproduction. The unit is housed in a sturdy bass‑reflex trapezoidal cabinet made from 18 mm board and carpet covering, enhancing acoustic performance while ensuring durability for portable and installed setups. The trapezoidal design minimizes internal resonances, optimizing low‑end performance. A stand adapter at the bottom allows easy pole mounting, and an On/Off switch for the piezo speakers gives you control over extended high‑frequency output. With a wide frequency response from 40 Hz to 20 kHz and a maximum SPL of around 125 dB, the SAX‑300DX delivers reliable, professional‑grade sound.

🔑 Key Specifications

• Power Handling: 300 W RMS (600 W programme)

• Configuration: Three‑way loudspeaker

• Frequency Response: 40 Hz – 20 kHz

• Drivers:

  • LF: 1 × 381 mm (15″) woofer with edge‑wound 76.2 mm (3″) voice coil

  • HF: 1 × dynamic compression driver + 2 piezo tweeters

• SPL: ~100 dB @ 1 W/1 m (125 dB max)

• Impedance: 8 Ω

• Crossover Frequency: 4 kHz

• Cabinet: Rugged bass‑reflex trapezoidal with carpet covering

• Connectors: ¼″ phone jack + terminal strip

• Dimensions: W550 × H755 × D425 mm

• Weight: ~33 kg
