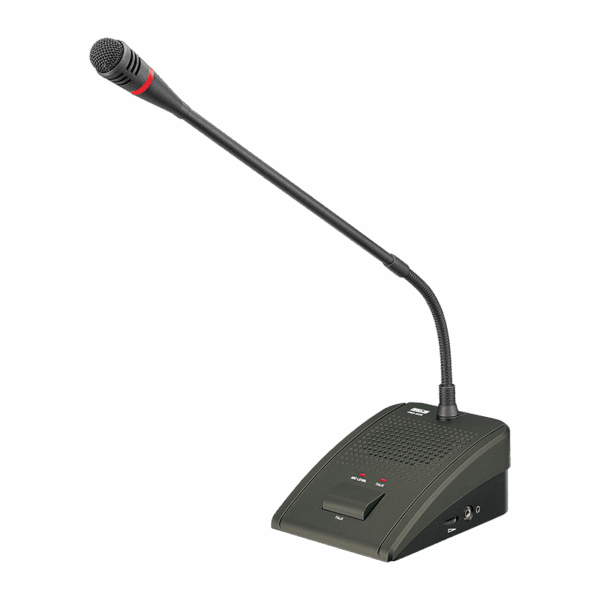

CMD-5200

Microphone -63dBV/µbar (7.5mV/Pa)
Current Consumption < 50mA Max.
Mic Auto Switch-Off Time 75 seconds approx.
Input Line
Output Line, Headphone
Speaker Max Input 300mW
Controls Talk Switch, Speaker Volume Control, Headphone Volume Control
Dimensions W118 × H70 × D160 mm
Weight 1.05 kg (w/o cable)
Accessories Foam Windshield, 2.5m Interconnecting Cable

Delegate Unit

Each unit is provided with a long gooseneck condenser microphone which is highly sensitive and unidirectional. The microphone is provided with a diffused LED housing to provide positive visual identification of the unit in operation. The built-in speaker in each unit provides clear and crisp sound reinforcement. The output level of the speaker can be adjusted through a recessed volume control in the unit. Each unit has a headphone output, TALK switch and a TALK LED. The MIC LEVEL LED in the delegate unit flickers to indicate microphone input signal level.
