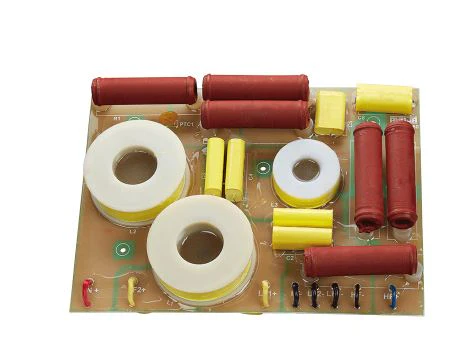

C-1300/750

The Ahuja C‑1300/750 is a quality 2‑way passive crossover network engineered for use in high‑output PA loudspeaker systems with multiple drivers. It’s built to handle up to 1300 W RMS, making it suitable for pairing with dual low‑frequency woofers (such as Ahuja L15‑MB500 or L15‑MB650) and a high‑frequency driver like the CDH‑1000. The crossover divides the audio signal into separate low and high frequency bands, ensuring that each driver reproduces the correct range with minimal distortion and optimized performance.

Featuring high‑power air‑core coils, low‑resistance components, and high‑quality metallised polyester capacitors, this network ensures reliable performance and durability even under demanding conditions. A PTC (Positive Temperature Coefficient) resistor provides protection for the high‑frequency driver, helping safeguard it from overload during high‑output use. The unit’s compact form factor and robust build make it easy to integrate into custom speaker enclosures or professional loudspeaker setups.

🔑 Key Features

• Power Capacity: Up to 1300 W RMS for high‑output speaker systems.

• Design: Professional 2‑way passive crossover network.

• Crossover Frequency: ~1.2 kHz for balanced driver distribution.

• Nominal Impedance: ~4 Ω — compatible with multiple driver configurations.

• Driver Protection: PTC resistor for HF protection.

• Components: High‑power, low‑resistance air‑core coils and quality capacitors.

• Build: Sturdy construction designed for professional loudspeaker integration.
