APT-016

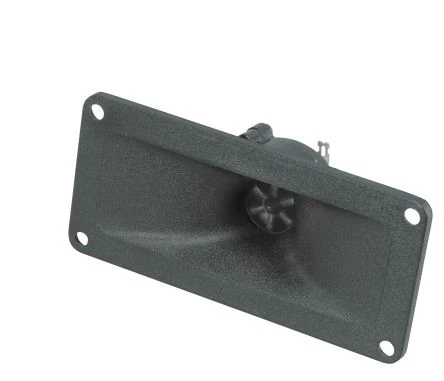

The Ahuja APT‑016 Piezo Tweeter is a professional‑grade high‑frequency speaker accessory designed to deliver clear and articulate treble in public address, home audio, or music playback applications. Built in a compact rectangular form, this tweeter fits easily into speaker enclosures and upgrades existing setups with enhanced high‑frequency detail.

It features a wide usable frequency range of about 3 kHz to 20 kHz, allowing it to reproduce extended highs and add sparkle to vocals and instruments. The unit has high impedance (over 1,000 Ω) and can be used with both 4 Ω and 8 Ω systems, making it a flexible option for various speaker designs and PA configurations.

Rated for up to 300 W music power (150 W in 8 Ω systems) and a sensitivity of around 91 dB SPL, the APT‑016 produces strong, clear high frequencies when paired with mid‑range or low‑frequency drivers. The radiation angle of roughly 45° vertical and 90° horizontal ensures good dispersion of high frequencies for broader listening coverage.

Compact and lightweight, this tweeter is suitable for integration into multi‑way PA speakers, custom cabinets, or retrofit enhancements where improved treble response and clarity are desired.
